AXP SoftAmp 3OD: Authentic Tube Overdrive in Your DAW
Meet AXP SoftAmp 3OD – a high-quality software simulator of a tube triode stage, developed by AXP. This plugin is an ideal solution for musicians, sound engineers, and producers who want to add the warm, rich sound of real vacuum tubes to their audio recordings. SoftAmp 3OD carefully reproduces the characteristics of a classic triode stage, typical of many guitar preamps, providing authentic saturation and overdrive.
Technology and Features
At the heart of SoftAmp 3OD is a powerful model based on a system of non-linear differential equations (ODE). This approach allows for an extremely accurate simulation of the behavior of a real tube stage, taking into account all the nuances of its operation. Thanks to intelligent computational techniques, the plugin provides high sound quality with optimized processor load.
SoftAmp 3OD is not just a simulator; it’s a flexible tool for shaping your sound. You can use it for light tube warming, which adds presence and volume to individual tracks, or confidently combine multiple instances of the plugin in series to achieve powerful high-gain overdrive, ideal for rock or metal genres. Experiment with equalization before or after the plugin to better sculpt the desired timbre.
Visual Control and Oversampling
One of the unique features of SoftAmp 3OD is the real-time display of the transfer characteristic graph. This graph clearly demonstrates the degree of non-linear distortion introduced by the tube, helping you better understand the impact of settings on your signal. The peak indicator on the graph flashes when the level exceeds 0 dB, signaling possible clipping. You can monitor stereo channels separately or simultaneously by switching modes under the graph.
To combat aliasing effects, which can occur with heavy overdrive, SoftAmp 3OD offers a 16x oversampling switch. Turning on oversampling significantly reduces unwanted artifacts, although it should be noted that the transfer characteristic graph may become less informative due to phase distortions introduced by oversampling filters. Usually, aliasing is quite low, so oversampling can be left off for most tasks.

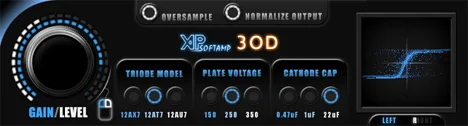

Key Settings
The plugin provides an intuitive set of controls that allow you to deeply customize the simulation of the tube stage. The three main parameters determine the character of the sound:
- Triode Model: Choose between three different tube models – the classic 12AX7, 12AU7, or 12AT7. Each has its unique character and gain.
- Anode Voltage: Switch between 150v, 250v, and 350v levels. Higher voltage usually provides more headroom and less compression.
- Cathode Capacitors: Available capacitances of 0.47uF, 1uF, and 22uF. The value of the cathode capacitor affects the frequency response and the nature of the bass component of the signal.
Gain and output level control are conveniently combined into a single control that interacts with the left and right mouse buttons for fine-tuning.
Conclusion
AXP SoftAmp 3OD is a powerful and versatile VST effect that will bring the live, breathing sound of tube equipment to your digital studio. Whether you need light saturation for vocals, warm drive for bass, or aggressive overdrive for guitar, SoftAmp 3OD provides the tools to realize your creative ideas. Download SoftAmp 3OD and experience the true magic of tubes!
